» Complete subscription support for WITSML V1.2 Data Flows
» WITSML V1.3.1.1 Publisher/Subscriber capability
» Extended WITSML V. 1.2/1.3.1.1 STORE capabilities Data can be stored
» Monitoring and alarm system
» Monitor Publisher System
» Extended fully customisable graphical interface
» Secure Socket encrypted access
» Data archive with direct access from the plot
» Plot with image capabilities
» Virtually unlimited numbers of access
» Accessible by Internet Browser
» Geological and engineering reporting

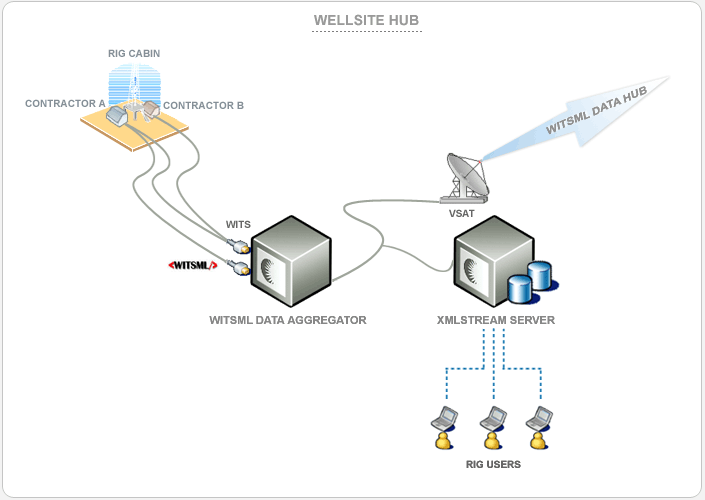

WDS Wellsite Hubs are located at the rigsite. Working within the operator environment guarantees fast and totally secure access to the data directly at the rigsite. External access can be secured by VPN tunnelling and SSL transactions enable secure access to data. Users can easily view the data in a format which best suits them. They can rearrange nearly all of the parameters: comments, lithologies and symbols can be simply managed from the graphical interface. Symbols can be linked to related items or documents that pop up directly on your screen: cores, seismic, RFT and anything else that is needed is just a click away. Analysis and standard computations can be performed in real-time. Data can be collected and delivered in real-time by a Monitor Publisher System and can be view as it is seen on the rig. WDS is not only a real-time management system, it also provides you with a standard and customisable set of forms to satisfy your daily engineering/geological/economical reporting needs.

WDS Internet Hubs can replicate to WDS Internet Hubs to share all or part of the data with your partners and directly with WDS Intranet Hub.
